Wedge Wire Screen Filter

Promulgator:LIDA FILTER DATE:

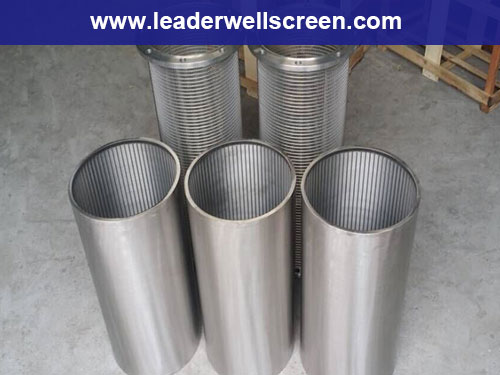

Wedge Wire Screen  Filter

Wedge Wire Screen Cylinder Filter  Introduction

 Shall be manufactured by spirally winding wedge shaped stainless steel wire over a frame of straight stainless steel wires parallel to the axis of the screen.The wedge wire shall be securely welded on the frame and fusion welded at every intersection.The ends of the frames shall be securely welded on the inner ends of each coupling adapter.

Nominal diameter and standard length of the screen

Open area of the screen (percent) and slot size

Collapse strength of the screen

Tensile strength of the screen

Details of the coupling connection including thread measurement

Number and size of supporting rod and shape and size of wedge wire

Stainless steel accoring to ASTM standard

All materials shall be new and of the specified standard

Submit certified copy of pre-shipment inspection done by the world recognized inspection and factory test report signed by chief inspector of the manufacturer.

Eliminate all possible damage to the materials during transit and handing with special care to screen sections and threaded portion of the materials.Thread protecting cap must be provided for protecting threaded of each screen

Specifications of   Wedge Wire Screen Cylinder Filter

1. Slot size(mm): 0.1~3mm

2. Open area: up to 60%

3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with  anticorrosion coating, stainless steel (304, 316L etc)

4. Unit Length up to 6 meters

5. Diameter: ranging from 25 to 800mm

6. End connection: plain beveled ends for butt welding or threaded coupling  or flange
