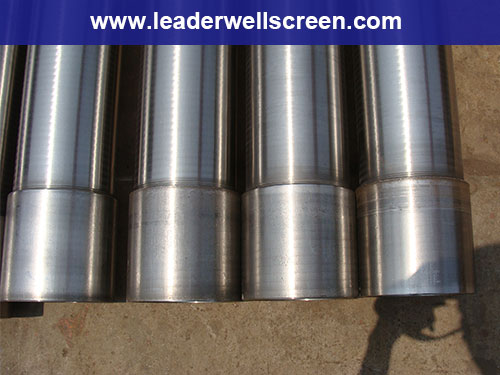

Johnson water well tube screen mesh

Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .

O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,

16inch,18inch, 20inch

the slot:0.1mm-45mm

the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm

the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire).

Styles of connection: by welding or by threaded male/female coupling.

Standard length: 1m-5.85m

Johnson water well tube screen mesh  can be re-used repeatedly.

The precise filter ratings are from 20 to 80 microns. Available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.
