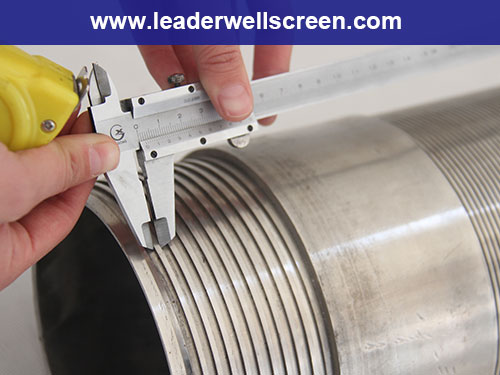

Stainless Steel well screen for an irrigation well

Promulgator:LIDA FILTER DATE:2016-01-08




Advantage of Stainless Steel well screen for an irrigation well,

 ·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.

 · A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.

 · V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.

 · V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Technical Information of Stainless Steel well screen for an irrigation well,

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded
