Slotted oil casing pipe

Promulgator:LIDA FILTER DATE:

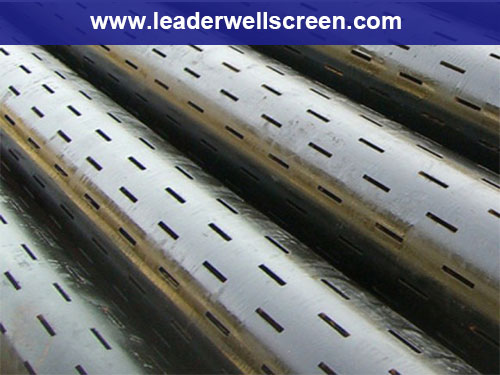

Slotted oil casing pipe

Material of Slotted oil casing pipe

Stainless steel, carbon steel,K55,J55,N80,etc



Features of Slotted oil casing pipe

1. The slotted liner is a robust and cost-effective solution for long completions or low productivity wells

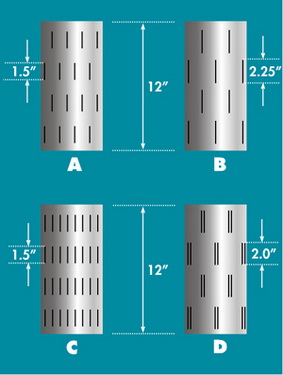

2. We offer straight and keystone slot type in the wide range of slotting patterns to create the required open area
API Std.Casing  ID
mm
Length
Slot
Length
mm
Slot
No./m
Slot
Width
Slot
Tolerance
Valid Filter
 Area
 cm2/m
Max.
Strength
    KN
Spec.
mm
Thickness
mm
Per
Weight
Kg/m
60.32  6.84  50.3  80  200  0.3  ±50  48  512.54
73.02  5.5  9.15  62  80  240  0.3  ±50  57.6  688.55
88.9  6.5  13.22  75.9  80  280  0.3  ±50  67.2  995.1
101.6  6.5  15.22  88.6  80  300  0.3  ±50  72  1151.2
114.3  18.47  100.3  10  80  320  0.3  ±50  76.8  1400.4
127  7.52  22.13  112  10  80  340  0.3  ±50  81.6  1673.8
139.7  7.72  25.11  124.3  10  80  360  0.3  ±50  86.4  1900.2
9.17  29.48  121.4  10  80  360  0.3  ±50  86.4  2232.4
168.3  8.94  35.09  150.4  10  80  400  0.3  ±50  96  2672.95
177.8  8.05  33.68  161.7  10  80  440  0.3  ±50  105.6  2559.2
9.19  38.19  159.4  10  80  440  0.3  ±50  105.6  2940.7


Slotted Well Casing Pipe




If  interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
Mob:86-15637366455(whatsapp,viber,wechat)
