China manufacture slotted water well casing pipe for drillin

Promulgator：LIDA FILTER DATE:

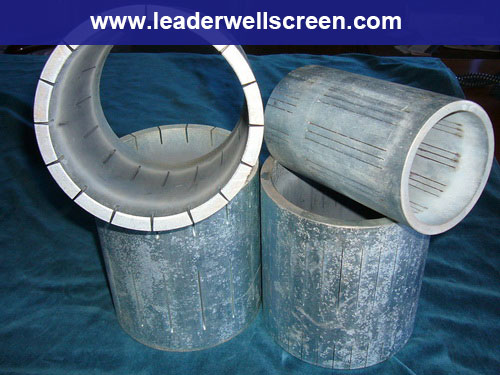

China manufacture slotted water well casing pipe for drilling

Technical Specification Slotted liner

API Std. Casing ID
mm		 Length
m		 Slot Length
mm		 Slot No.No./m Slot Widthmm Slot
Tolerance		 Valid Filter Area
cmˆ2/m		 Max. Strength
KN
Spec.
mm		 Thickness
mm		 Per Weight
Kg/m
60.32 5 6.84 50.3 3 80 200 0.3 ±50 48 512.54
73.02 5.5 9.15 62 3 80 240 0.3 ±50 57.6 688.55
88.9 6.5 13.22 75.9 3 80 280 0.3 ±50 67.2 995.1
101.6 6.5 15.22 88.6 3 80 300 0.3 ±50 72 1151.2
114.3 7 18.47 100.3 10 80 320 0.3 ±50 76.8 1400.4
127 7.52 22.13 112 10 80 340 0.3 ±50 81.6 1673.8
139.7 7.72 25.11 124.3 10 80 360 0.3 ±50 86.4 1900.2
9.17 29.48 121.4 10 80 360 0.3 ±50 86.4 2232.4
168.3 8.94 35.09 150.4 10 80 400 0.3 ±50 96 2672.95


Related product : Pre-packed Well Screen for well drilling
