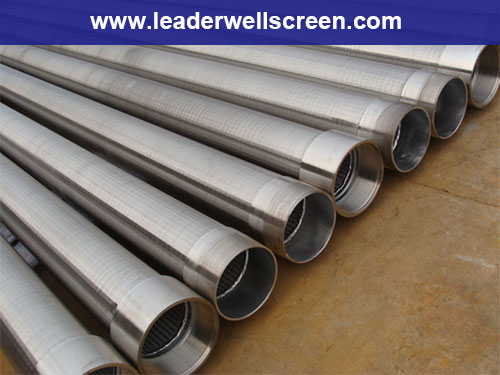

V Shaped Wire Welded Water Well Screen pipe consist of V-shape profile wire and the longitudinal support rods.

the V-wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So wedeg wire screens has sturdy constriction and good mechanical property.

AISI304/316 wedge wire screen/wire wrapped continuous slot screen/johnson water well screen

Vee-Wire Profiles

Vee-Wire Profile wires range in widths from 0.020in.(0.508mm)to 0.195in.(4.953)and heights ranging from 0.040 in. (1.016 mm) to 0.363 in. (9.220 mm).
Other wire shapes (Tri-Wire, Iso-Wire, Iso-Grizzly Wire, Grizzly-Wire, and more) also available.

Common wedge wire screen Shaped Support Rods

V shaped support rods range in widths from 0.029 in. (0.737 mm) to 0.151 in. (3.835 mm) and heights ranging from 0.102 in. (2.591 mm) to 0.120 in. (3.048 mm).

AISI304/316 wedge wire screen/wire wrapped continuous slot screen/johnson water well screen

Specification of  V Shaped Wire Welded Water Well Screen pipe:

SIZE

(inch)

O.D

(mm)

SLOT

(inch)

LENGTH

(m)

Collapse

Strength

(psi)

Tensile

Weight

(ton)

Wire size

(mm)

RODS (mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/5



any questions ,pls mail to sales03@xxldlq.com
