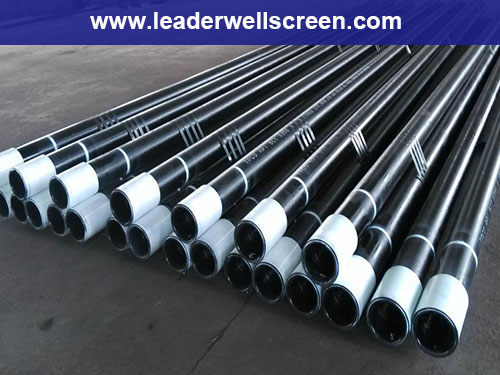

API oil well casing pipe
- Promulgator：LIDA FILTER DATE:
1.API casing pipe
2.K55 or J55 or others
3.API standard
4.STC thread or others
5. Any OD and wall thickness you need.
| Casing Technical Specification (Standard API Spec 5 CT) | |||||||
| Size | Outside Diameter | Inside Diameter | Grade | Wall Thickness | |||
| in | mm | in | mm | in | mm | ||
| 4-1/2 | 4.500 | 114.30 | 4.000 | 101.60 | J55K55N80 | 0.250 | 6.35 |
| 3.920 | 99.57 | J55K55N80 | 0.290 | 7.37 | |||
| 5 | 5.000 | 127.00 | 4.408 | 111.96 | J55K55N80 | 0.296 | 7.52 |
| 4.276 | 108.61 | N80P110 | 0.362 | 9.29 | |||
| 4.126 | 104.80 | N80P110 | 0.437 | 11.10 | |||
| 5-1/2 | 5.500 | 139.70 | 4.892 | 124.26 | J55K55N80 | 0.304 | 7.72 |
| 4.778 | 121.36 | N80 | 0.361 | 9.17 | |||
| 4.670 | 118.62 | N80 | 0.415 | 10.54 | |||
| 7 | 7.000 | 177.80 | 6.366 | 161.70 | J55K55N80 | 0.317 | 8.05 |
| 6.276 | 159.41 | J55K55N80 | 0.362 | 9.19 | |||
| 6.184 | 157.07 | N80 | 0.408 | 10.36 | |||
| 9-5/8 | 9.625 | 244.48 | 8.755 | 222.38 | N80 | 0.435 | 11.05 |
| 8.681 | 222.50 | N80 | 0.472 | 11.99 | |||
| 10-3/4 | 10.750 | 273.05 | 10.050 | 255.27 | H40J55K55N80 | 0.350 | 8.89 |
API seamless Casing Steel pipe for oil wells Hot Sell Africa
Seamless Steel Pipe API 5CT Casing for oil wells
API Standard Oil Well Casing Pipe/ gas Well Drilling pipe
API Casing Pipe/oil gas well drilling pipe hot sale arroundABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
