Bridge Slot Screens for deep well

Promulgator:LIDA FILTER DATE:2016-01-08

Bridge Slot Screens for deep well

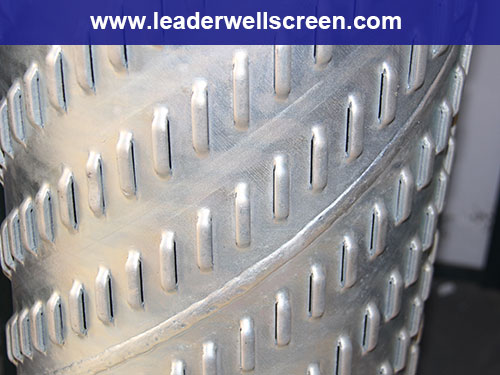

Bridge slot screen.The slots of this kind of screen  are punched precisely in a flat sheet which then is rolled into a pipe.
The sand and gravel can't easily block the slot because of the special bridge style design, and Bridge Slot Screens has great mechanical strength and water entering capacity. Meanwhile, Bridge Slotted Screens use steel punching technology and is rolled in many ways, so they are light, cheap and easily operating.

Selection of slot size

Aquifer classification

gravel

Grouan

middle sand

thin sand

farine sand

The screening results

(mm)

1-2.5

0.5-1

0.25-0.5

0.1-0.25

0.1-0.25

Span the gap

(mm)

3

1.5-2

1

1

0.75

Packing specification

(mm)

4-20

2-8

2-3

2-3

2-3

Gravel thickness

(mm)

75-100

100

100-200

100-200

100-200



any problems ,pls mail to sales02@xxldlq.com
