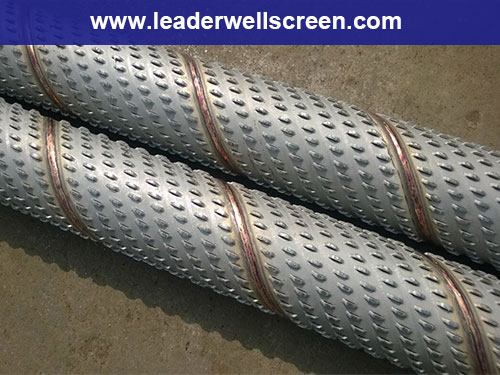

Spiral Bridge slot screen

Promulgator:LIDA FILTER DATE:2015-10-29



nominal
specifications
(mm)
146 159 219 273 325 377 426 529
inside diameter   130 140 138 200 198 254 250 246 305 300 297 357 350 346 406 400 398 502 500 498
thickness 5 5 6 5 6 5 6 8 5 6 8 5 6 8 5 6 8 6 7 8
coupling outside diameter  146 160 162 220 226 274 278 278 325 328 329 377 378 379 426 428 432 529 530 531



Usually the length of bridge slot screen is 3.1m, and our engineer also can design the products and supply
 the best solution as per the clients special requirements.Bridge slot screens increase
its flow to three to nine times, when compared with other kinds of screens with the same slot width, diameter and length.
