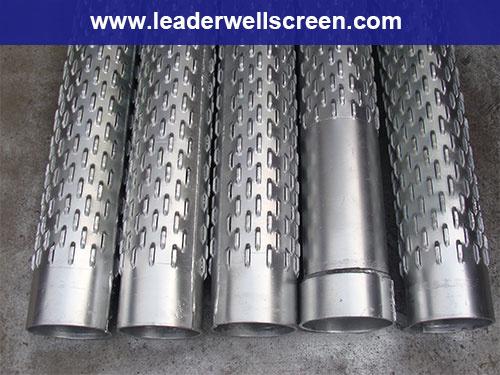

Bridge slotted screen
- Promulgator：LIDA FILTER DATE:
1.Material:Low Carbon or Stainless Steel
2.Length:3m 4.5m 6m
3.OD:168-1000mm
4.Slot Size:3-8mm
Technical Data of bridge slotted screen,
|
Diameter (mm) |
146 | 159 | 219 | 273 | 325 | 377 | 426 | 529 | ||||||||||||
| ID | 130 | 140 | 138 | 200 | 198 | 254 | 250 | 246 | 305 | 300 | 297 | 357 | 350 | 346 | 406 | 400 | 398 | 502 | 500 | 498 |
| Thickness | 5 | 5 | 6 | 5 | 6 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 6 | 7 | 8 |
| Coupling OD | 146 | 160 | 162 | 220 | 226 | 274 | 278 | 278 | 325 | 328 | 329 | 377 | 378 | 379 | 426 | 428 | 432 | 529 | 530 | 531 |
We can provided technical support and produce the pipe as customers' request.
factory sand control pipe bridge slot screen
sand control screen pipe
water well screen bridge slot screen, bridge slot scren,1.5m
4 inch stainless steel drill pipe 2 3/8 fittings bridge slotABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
